Products & Solutions
Precision Load Cells, Indicators & Weighing Automation — Engineered for Industrial Reality.
Every product in this catalog is selected and calibrated against the standard Rajiv Ranjan built his reputation on across 25 years inside Vishay Precision Group: strain gage accuracy that survives real industrial environments, not just laboratory conditions.
Section A
Load Cells
A1 · S-TYPE (TENSION/COMPRESSION)

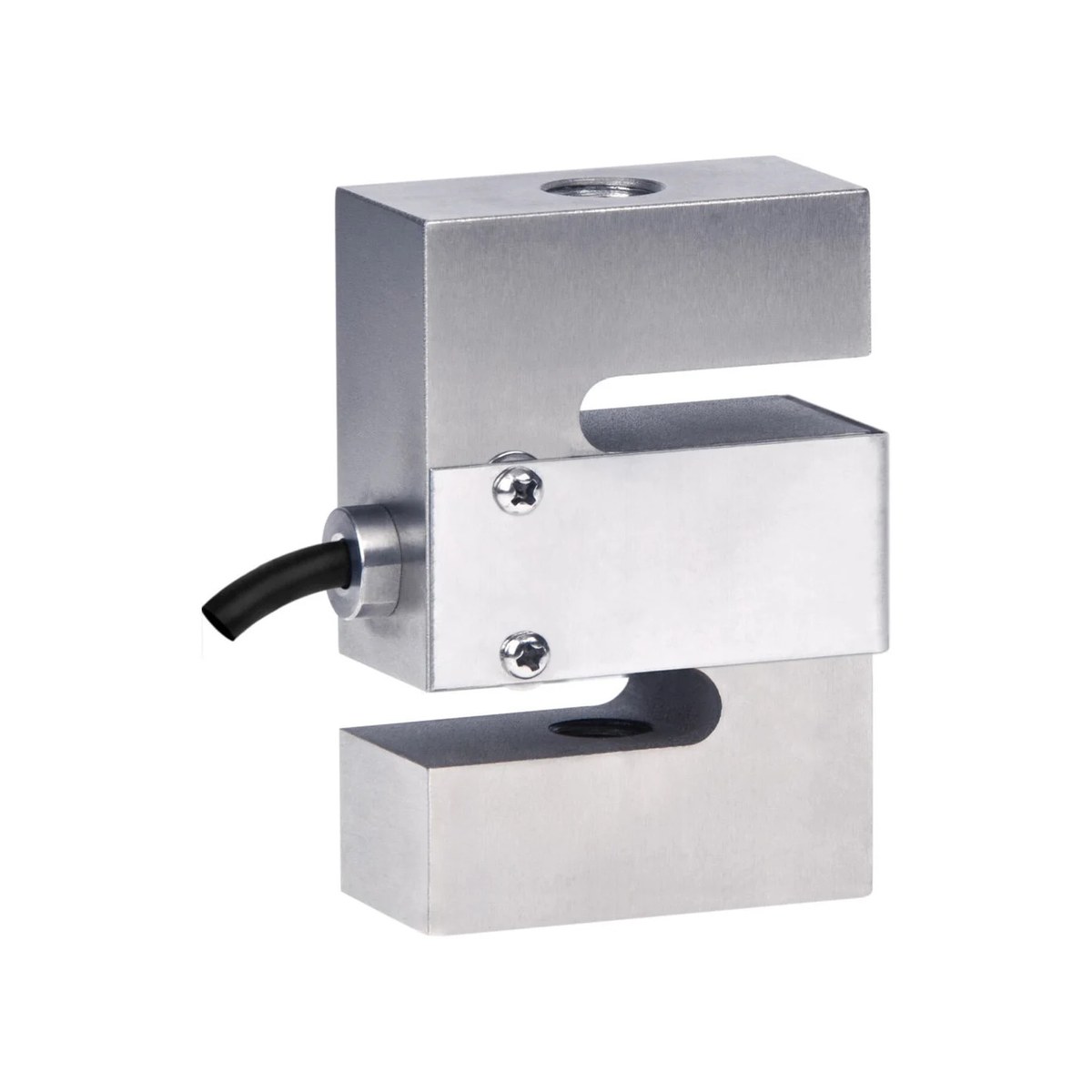

S-Type Load Cells
Engineered for applications requiring both tensile and compressive force measurement — hopper suspension systems, crane scales, hanging scale assemblies, and in-line process force verification. Our S-Type range, aligned to Sensortronics and VPG design architecture, features a machined alloy-steel or stainless-steel body, welded hermetic sealing for washdown environments, and full-bridge strain gage configuration for high signal stability.
| Capacity Range | 50 kg – 50,000 kg |
| Accuracy Class | C3 / C6 (OIML R60 aligned) |
| Output Sensitivity | 2 mV/V (nominal) |
| Ingress Protection | IP66 / IP67 (hermetic IP68 variants) |
| Material | Alloy Steel / Stainless Steel 17-4PH |
| Typical Application | Crane scales, hopper suspension, tension-link weighing |
A2 · SHEAR BEAM (PLATFORM & FLOOR SCALES)

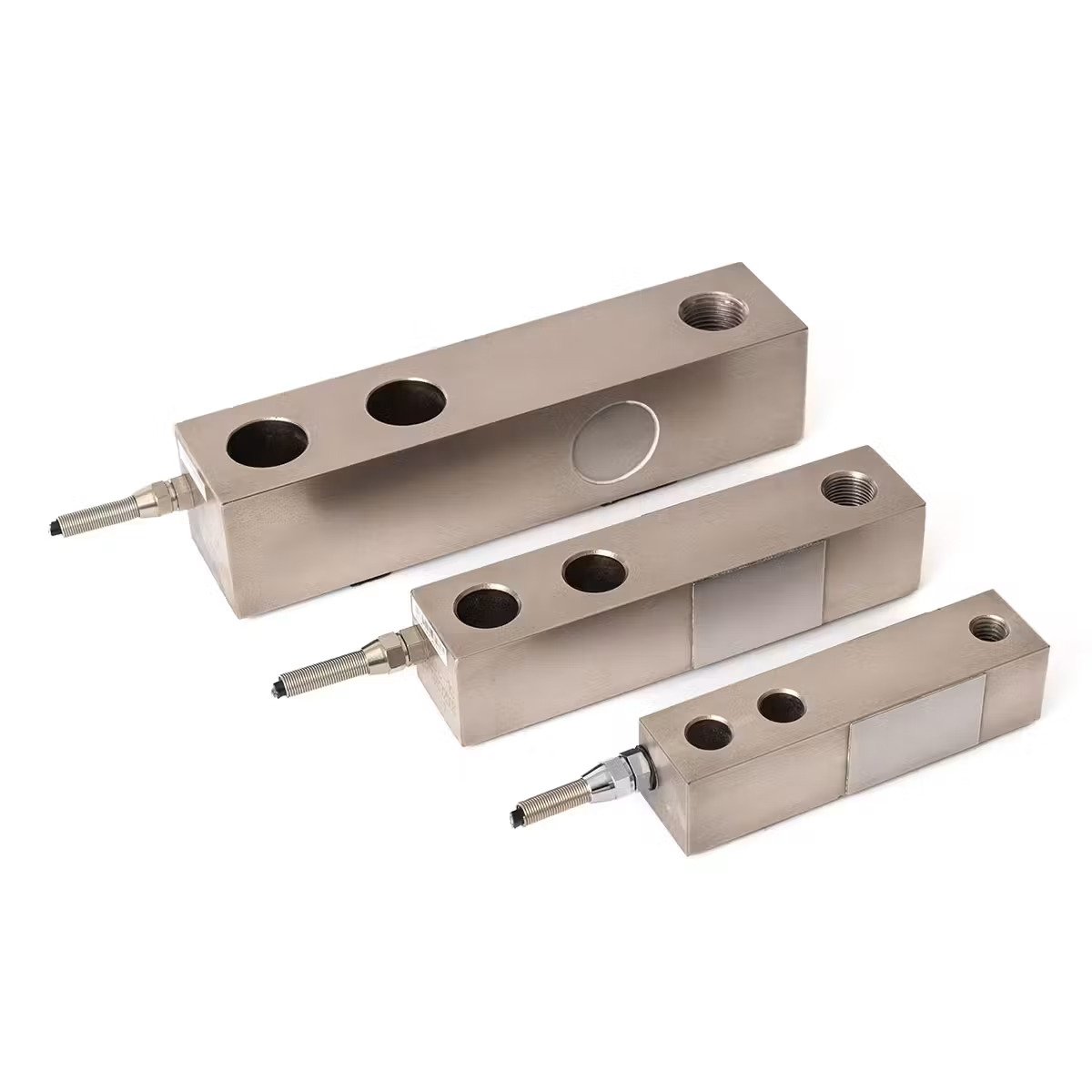

Shear Beam Load Cells
Purpose-built for platform scales, floor scales, and low-profile bench weighing systems. Shear beam architecture places the strain gage at the point of maximum shear stress rather than bending stress, delivering superior resistance to off-center (eccentric) loading — a critical requirement for pallet and platform scale applications where load placement is never perfectly centered.
| Capacity Range | 500 kg – 10,000 kg per cell |
| Accuracy Class | C3 (OIML R60) |
| Eccentric Load Compensation | High (shear-plane design) |
| Ingress Protection | IP66 (IP68 nickel-plated variants available) |
| Typical Application | Platform scales, pallet scales, floor scales, weighbridges (multi-cell arrays) |
A3 · SINGLE-POINT

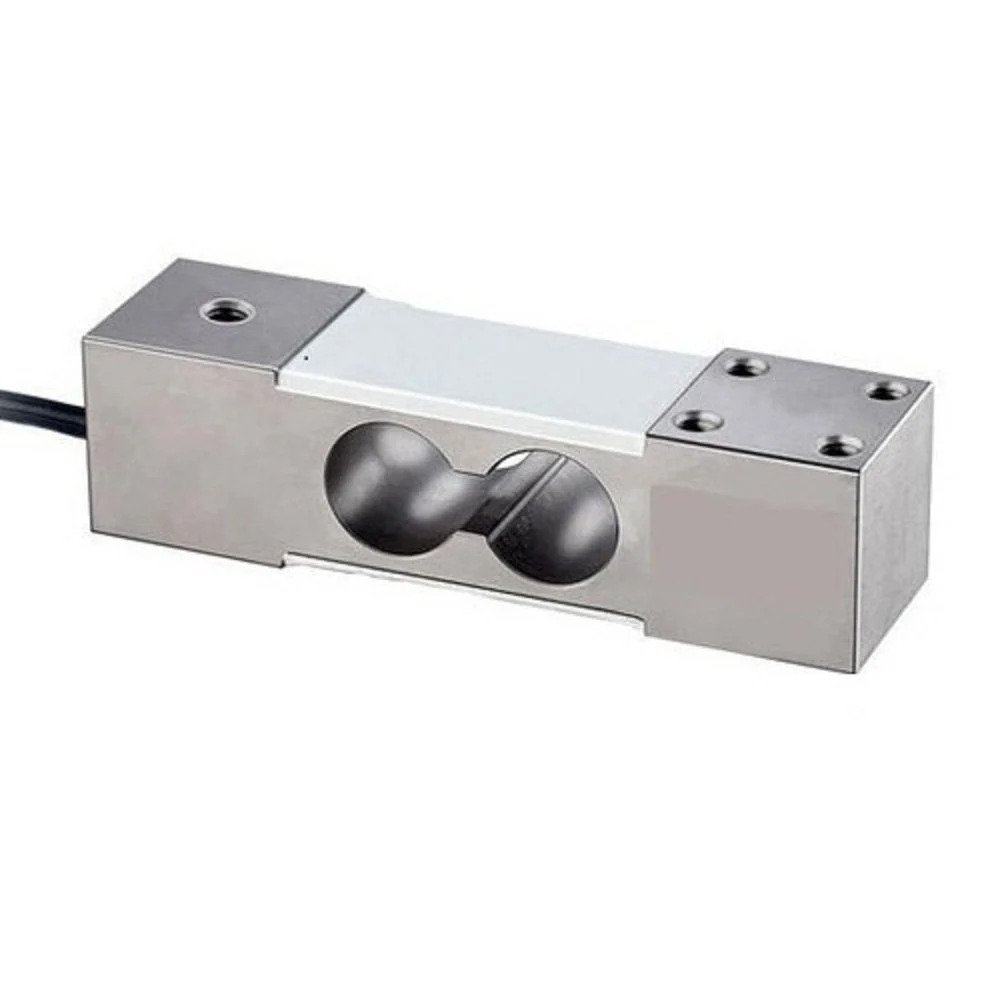

Single-Point Load Cells
Designed for retail and light-industrial platform scales where a single cell must accurately measure load regardless of position on the platform. Aluminum-body single-point cells offer cost-efficient accuracy for bench scales, checkweighers, and small platform applications up to moderate capacities.
| Capacity Range | 3 kg – 1,500 kg |
| Accuracy Class | C3 |
| Material | Aluminum alloy (anodized) |
| Ingress Protection | IP65 |
| Typical Application | Bench scales, checkweighers, small platform/retail scales |
A4 · UNIVERSAL TENSION-COMPRESSION

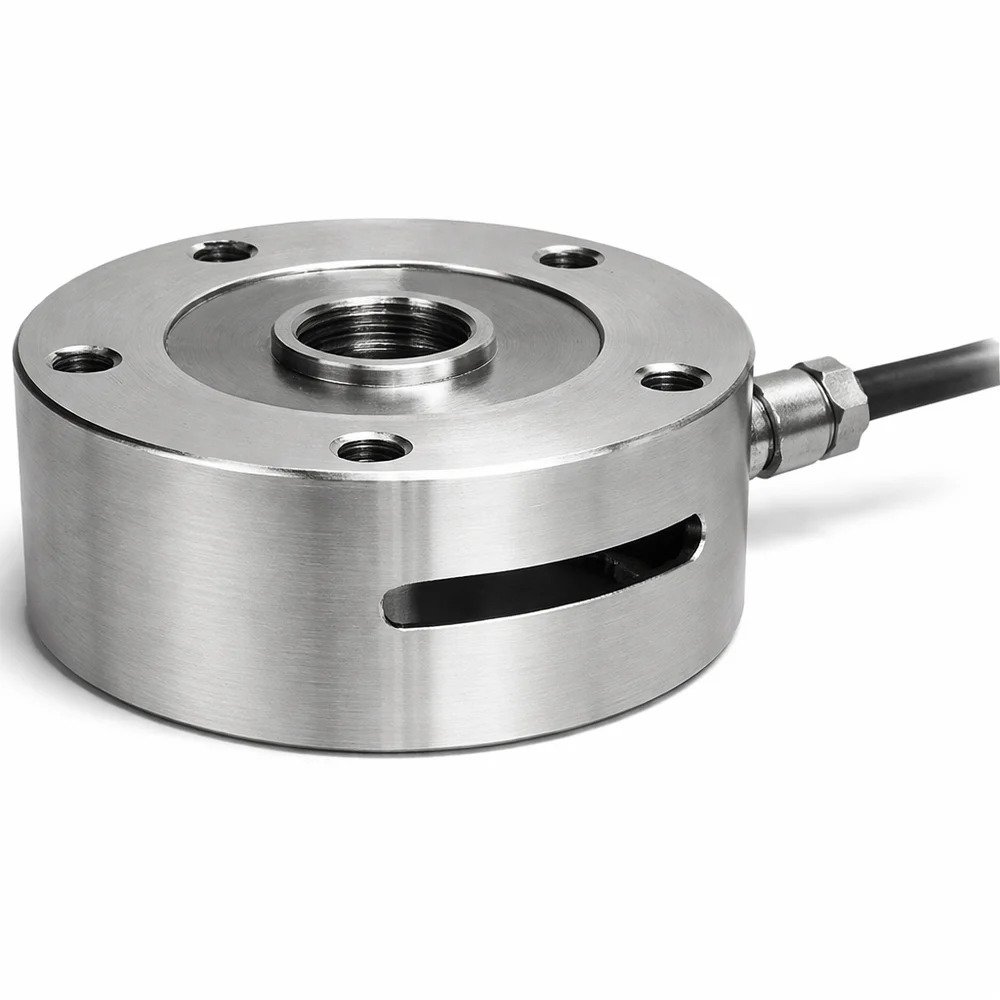

Universal Tension-Compression Cells
For laboratory, test-stand, and process-critical applications requiring bidirectional force measurement in a single robust housing — material testing rigs, tension monitoring on winches and cable systems, and force-verification stands. Built with high-linearity full-bridge circuits and low-hysteresis alloy construction.
| Capacity Range | 100 kg – 100,000 kg |
| Accuracy Class | 0.03% – 0.05% FS (precision grades available) |
| Output Signal | mV/V or optional amplified 4–20mA / 0–10V |
| Typical Application | Test stands, tension monitoring, force calibration benches |
Section B
Weighing Indicators & Controllers
B1
Panel-Mount Digital Indicators
Industrial-grade digital weight indicators engineered for control-panel integration in harsh factory environments — high-visibility LED/LCD displays, sealed membrane keypads, and multi-protocol communication (RS-232/RS-485, Modbus, Ethernet/IP) for seamless SCADA and PLC integration.
B2
Batching Process Controllers / Transmitters
Multi-ingredient batching controllers designed for hopper and tank-based process control — supporting setpoint-driven fill/discharge sequencing, tolerance-band alarms, and recipe management for repeatable batch accuracy across production runs.
B3
Wireless & Networked Indicator Systems
Multi-station weighing networks for facilities requiring centralized data logging across multiple weighing points — truck scales, platform scales, and process tanks reporting to a single supervisory dashboard.
Section C
Weighing Systems & Automation
C1
Conveyor Belt Weighing Systems
Continuous in-motion weighing for bulk material handling — cement, coal, aggregate, and grain processing lines. Idler-mounted load cell arrays paired with beltway speed sensors calculate real-time throughput (tons/hour) without interrupting material flow.
C2
Weighmetric (Net Weight) Filling Machinery
Net-weight filling systems for packaged goods — bagging lines, drum filling, and container filling — using high-speed load cell feedback loops to achieve fine/coarse fill-rate transitions for tight tolerance compliance.
C3
Hopper & Tank Batching Architectures
Full-stack engineering for suspended hopper and tank weighing — including mounting hardware (compression/tension mounts), load cell selection matched to vessel dead-load and live-load ratios, junction box summing architecture, and controller integration for automated batch cycles.
C4
Automated Bag/Packing Line Integration
End-of-line packing automation integrating weighing checkpoints with bagging, sealing, and palletizing equipment — ensuring statistical fill-weight compliance (Legal Metrology 'Average Quantity' rules) across high-throughput packing operations.
Not sure which cell or system fits your application?
Talk to Our Engineering Team →
